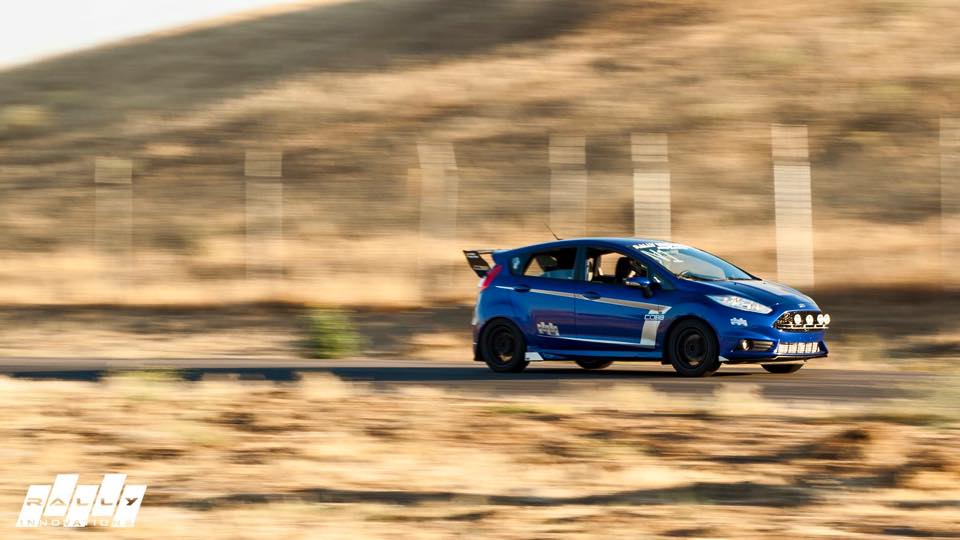

Man, what a blast the past few months have been with the Project Fiesta ST! The photo above is how it appears today – but let’s step back a few weeks to the car’s original debut, the friday before Fabulous Fords Forever, the biggest Ford show on the West Coast.

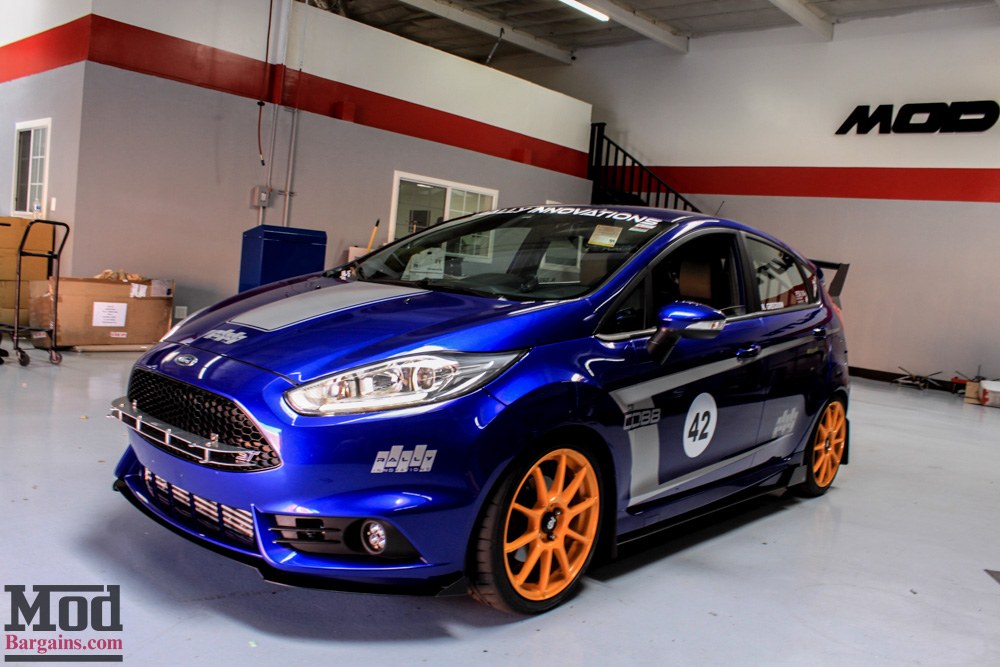

ModAuto_Fiesta_ST_Rally_Innov_Nick-8Since we last wrote, this little car has made quite the transformation. Our Project Fiesta ST now has some “show” to match the “GO” it already had. We’ve recently partnered with local manufacturer Rally Innovations who designs and manufactures aero parts and rally gear – originally with the Subaru market and now with the Ford EcoBoost scene. All the aero parts you see on the car are available right here at ModAuto and we have these in stock.

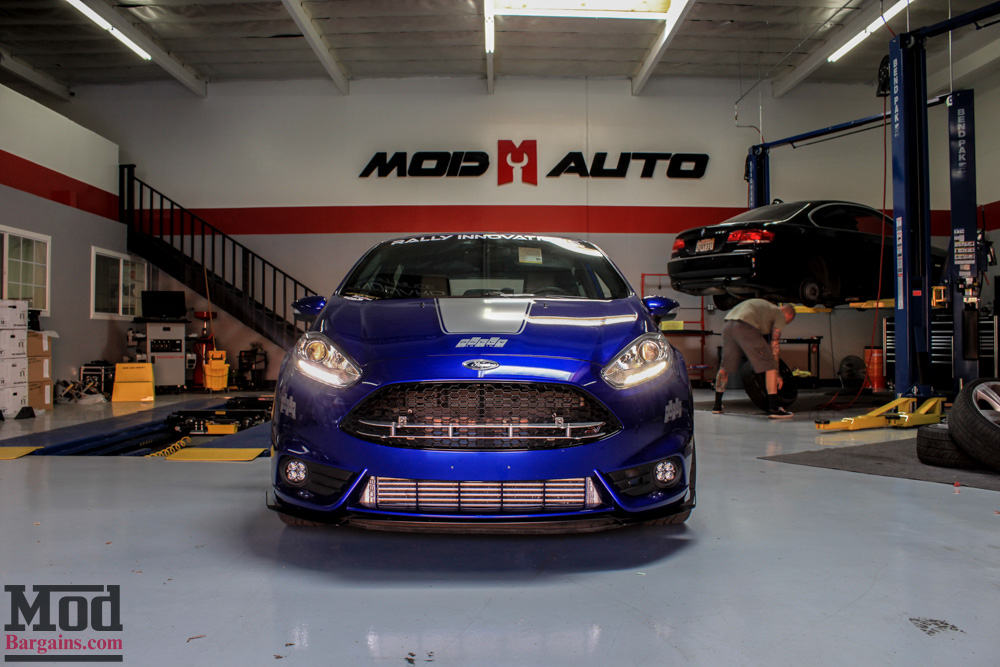

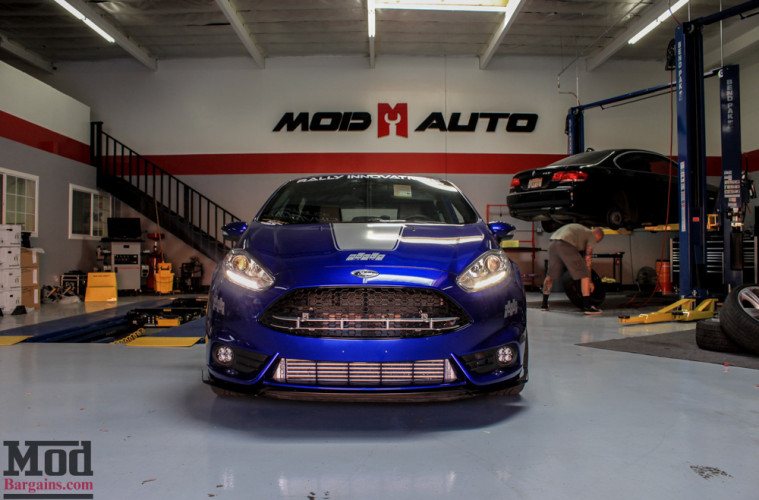

ModAuto_Fiesta_ST_Rally_Innov_Nick-7Up front the COBB Tuning Front Mount Intercooler pokes out, completely filling the lower grille opening – the COBB FMIC is the single largest direct bolt on core FMIC currently on the market, offering a significant drop in Air Charge Temperatures – the FMIC is the key component that lets you bump up your tune to Stage II and III so it’s definitely important. Since we last wrote, we used the Cobb Chargepipes for a while before switching out for a Mountune Hotside Chargepipe used with the OEM intercooler pipes and swapped out the COBB Rear Motor Mount for Mountune RMM, only because I had the extra credit at Mountune and felt like changing things up a bit.

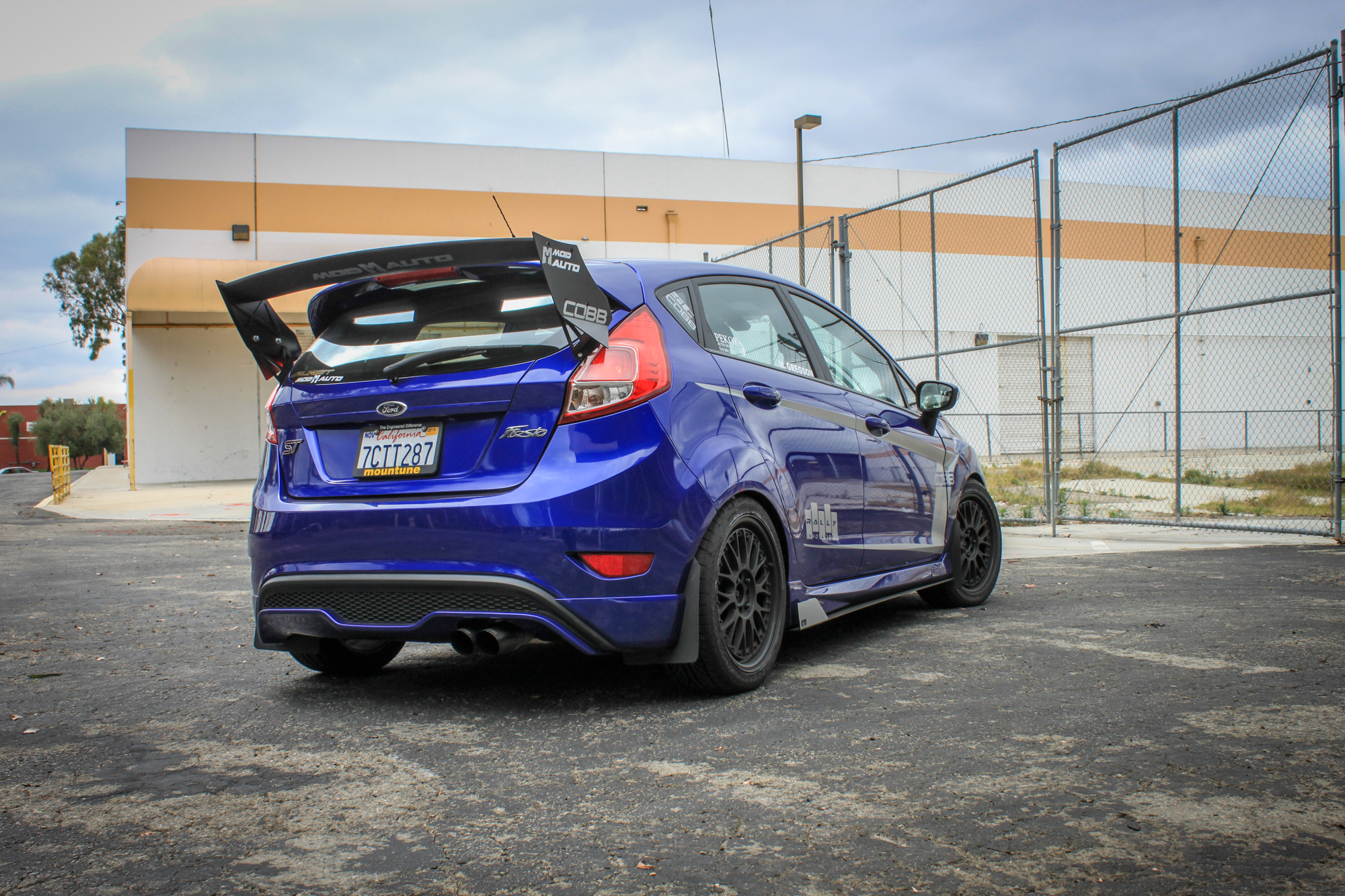

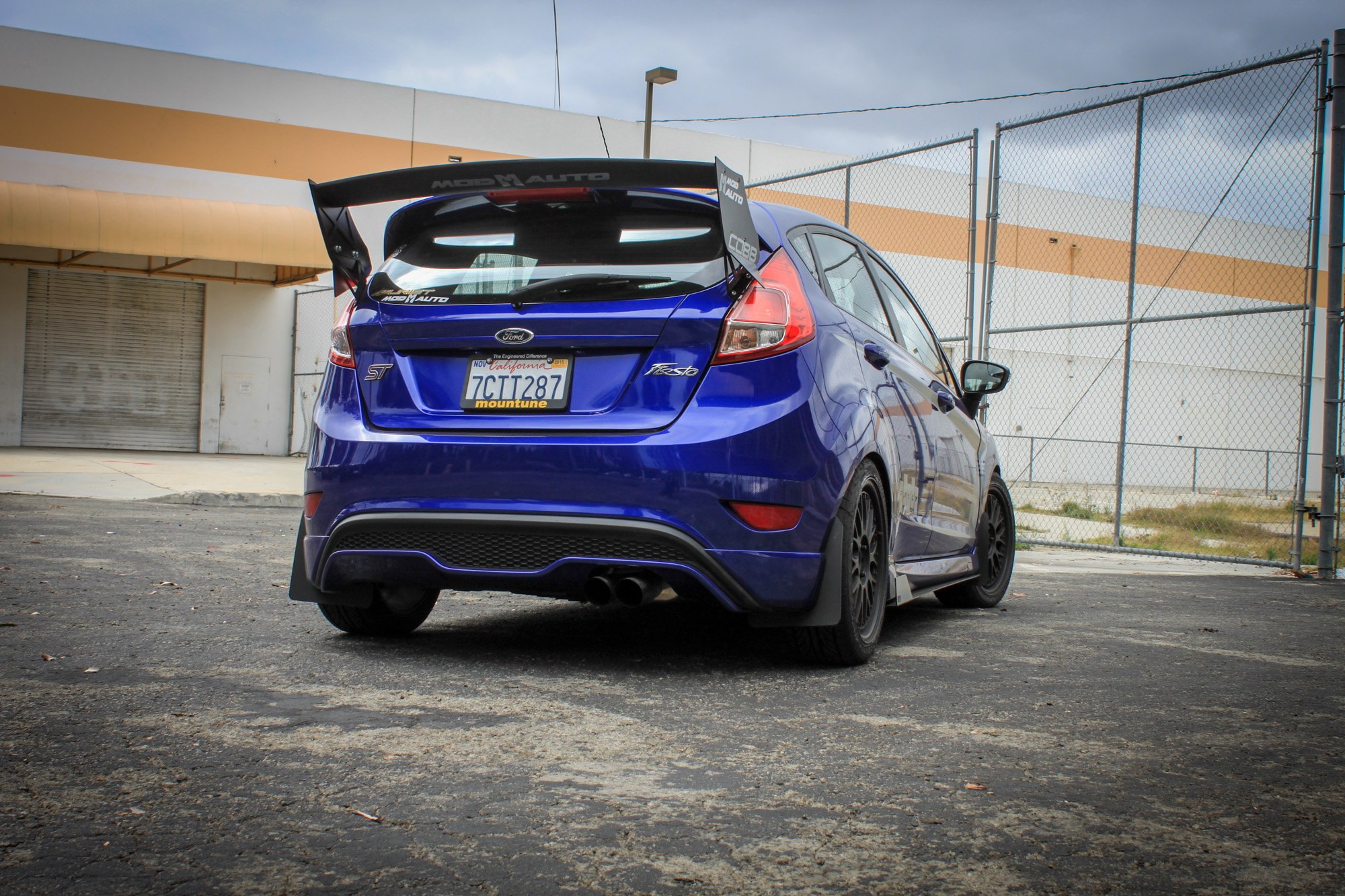

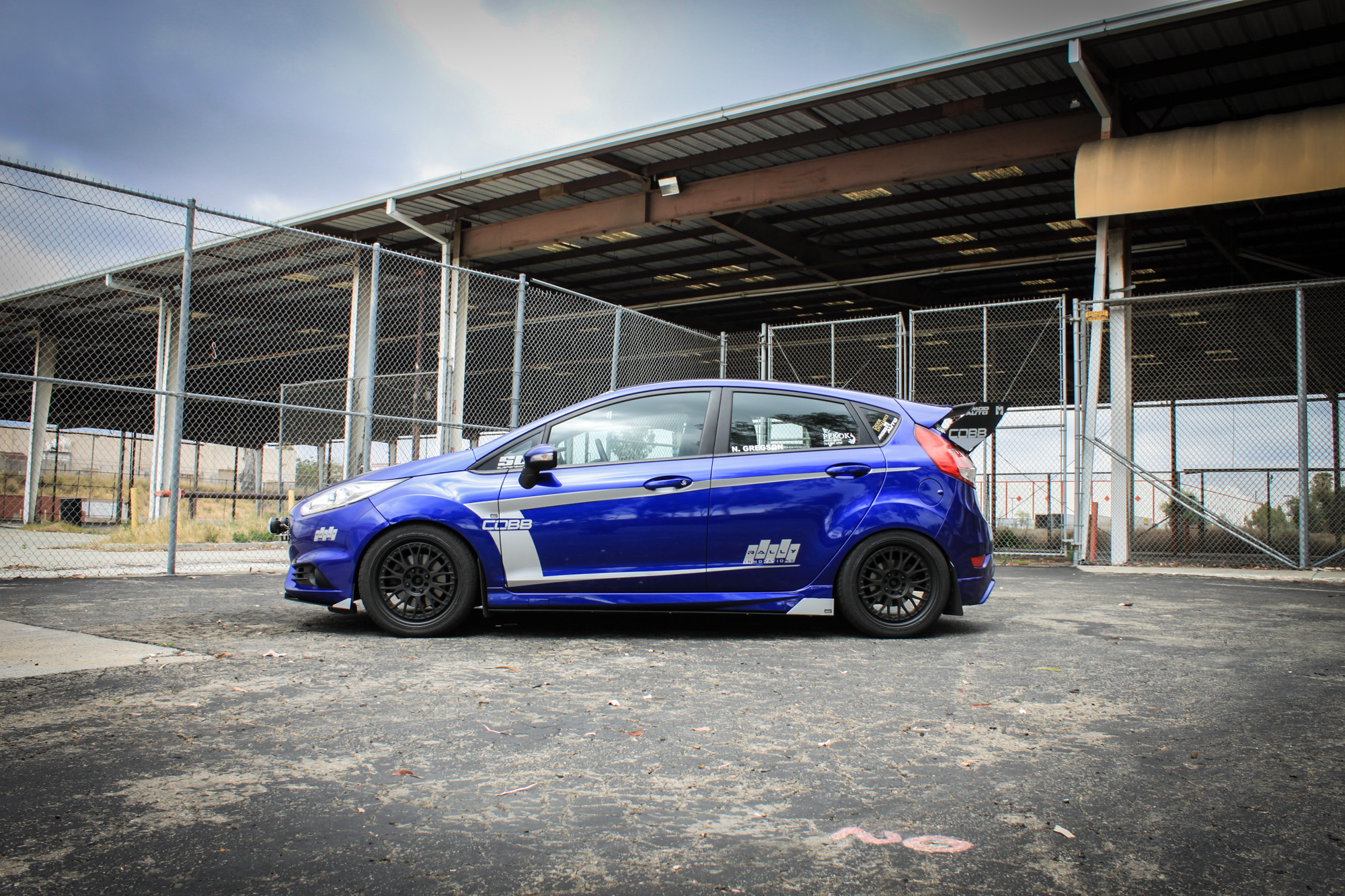

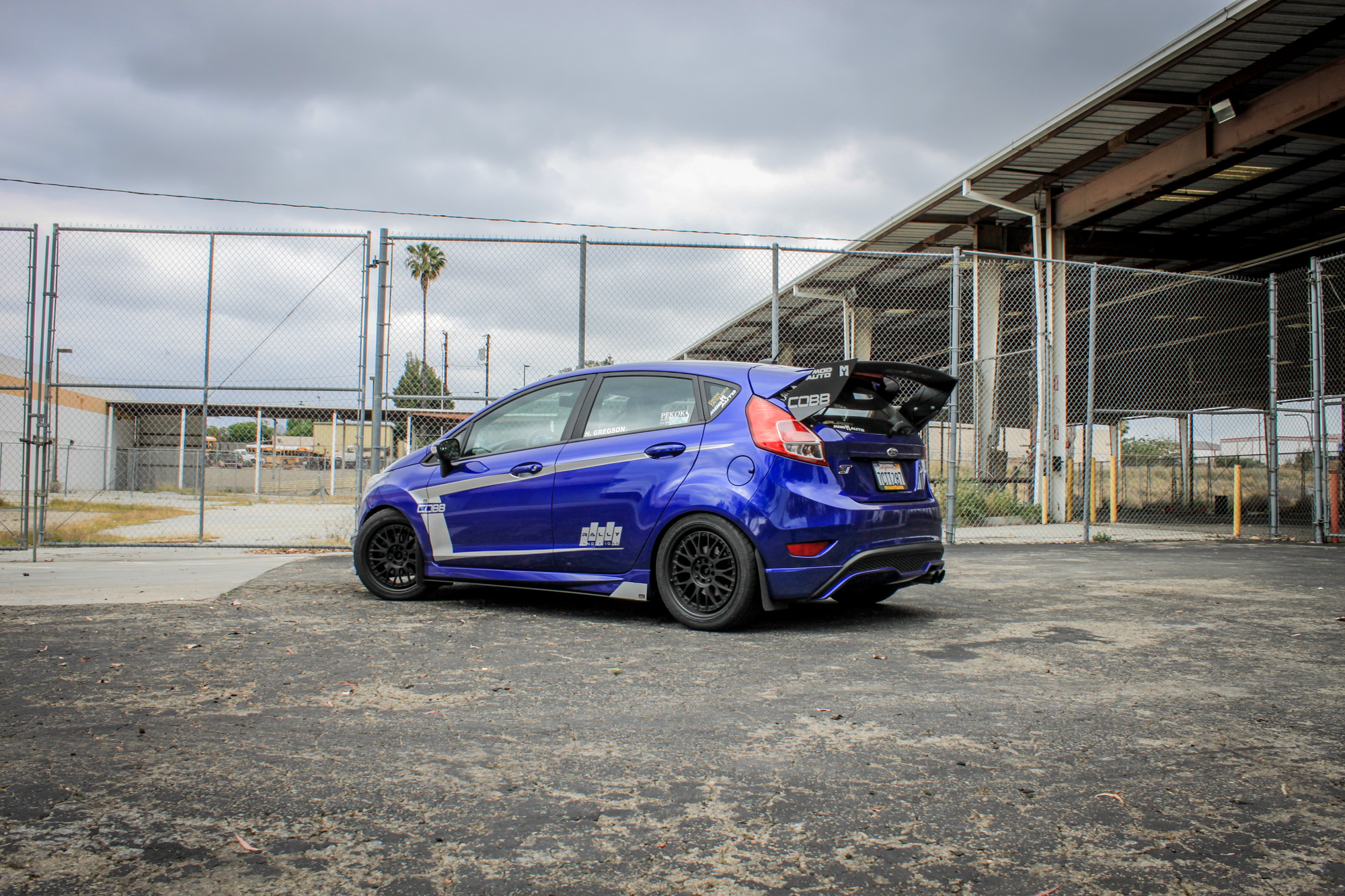

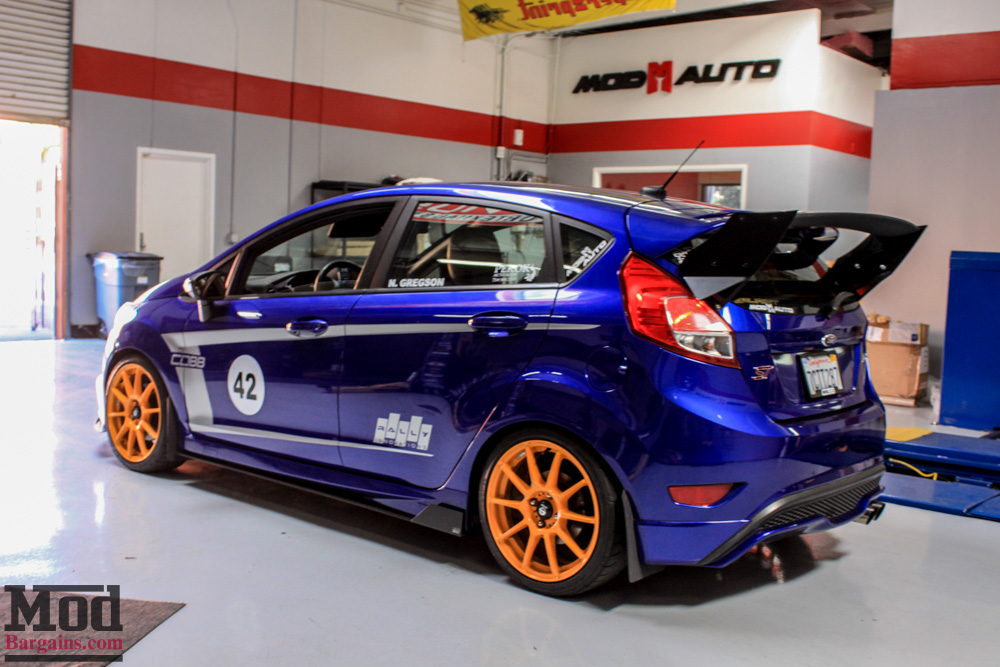

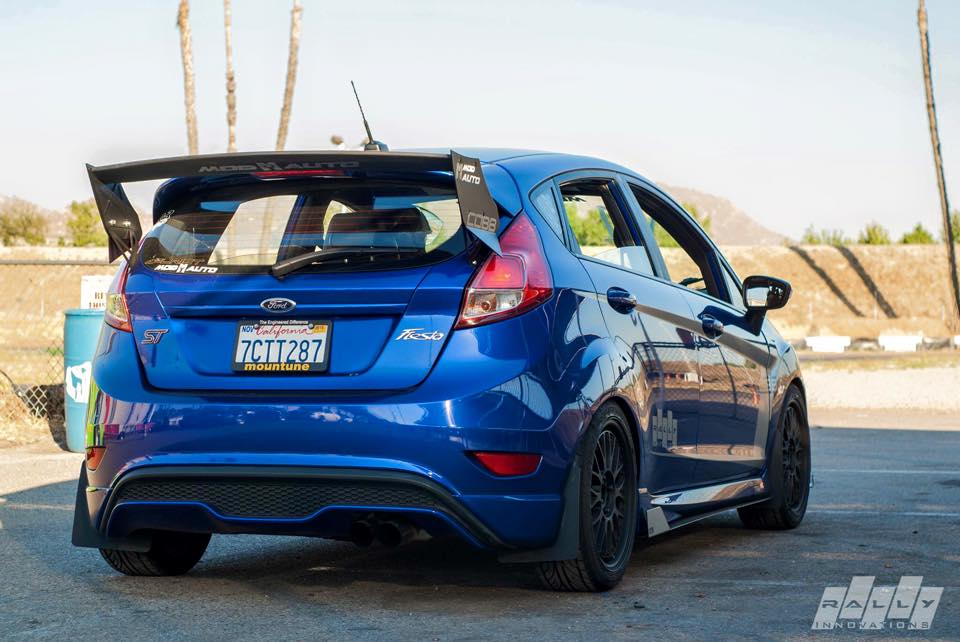

ModAuto_Fiesta_ST_Rally_Innov_Nick-5 From this angle you can make out the contours of the black Rally Innovations Front Splitter for Fiesta ST, which compliments the Rally Innovations Side Skirt Diffuser Extensions for Fiesta ST and Rally Innovations Rear Wing for Fiesta.ModAuto_Fiesta_ST_Rally_Innov_Nick-9The huge Rally Innovations Fiesta rear wing is a big attention getter and also aerodynamically functional. It’s worth noting that this is the first production spoiler from Rally Innovations, and only the current batch sits at this height – later production runs will feature taller endplates that add another 1.5-2″ to bring the blade further into the airflow going over the car.

In this photo, the car’s sitting on a set of Sparco 17in wheels, custom powdercoated yellow. While these sure made a splash for Fabulous Fords Forever, they’re a bit too loud to stay on my daily driven car – and the yellow wheels really did break necks at the show.ModBargains_ModAuto_FabFords-2015-BoothPic-2

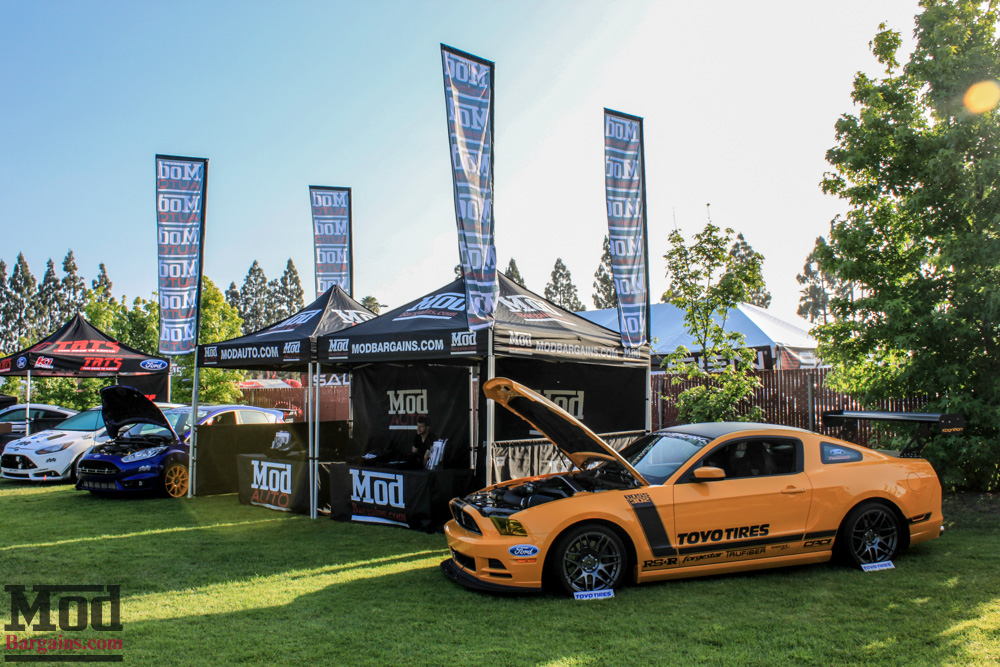

ModBargains_ModAuto_FabFords-2015-BoothPic-5

After the show, we experimented with a few different lighting configurations to put the Rally Innovations Front Light Mounting Plate for Fiesta to good use. The default is to stagger two up, two down, classic rally style, but that really didn’t fit the character of the car… so we had  to change it.

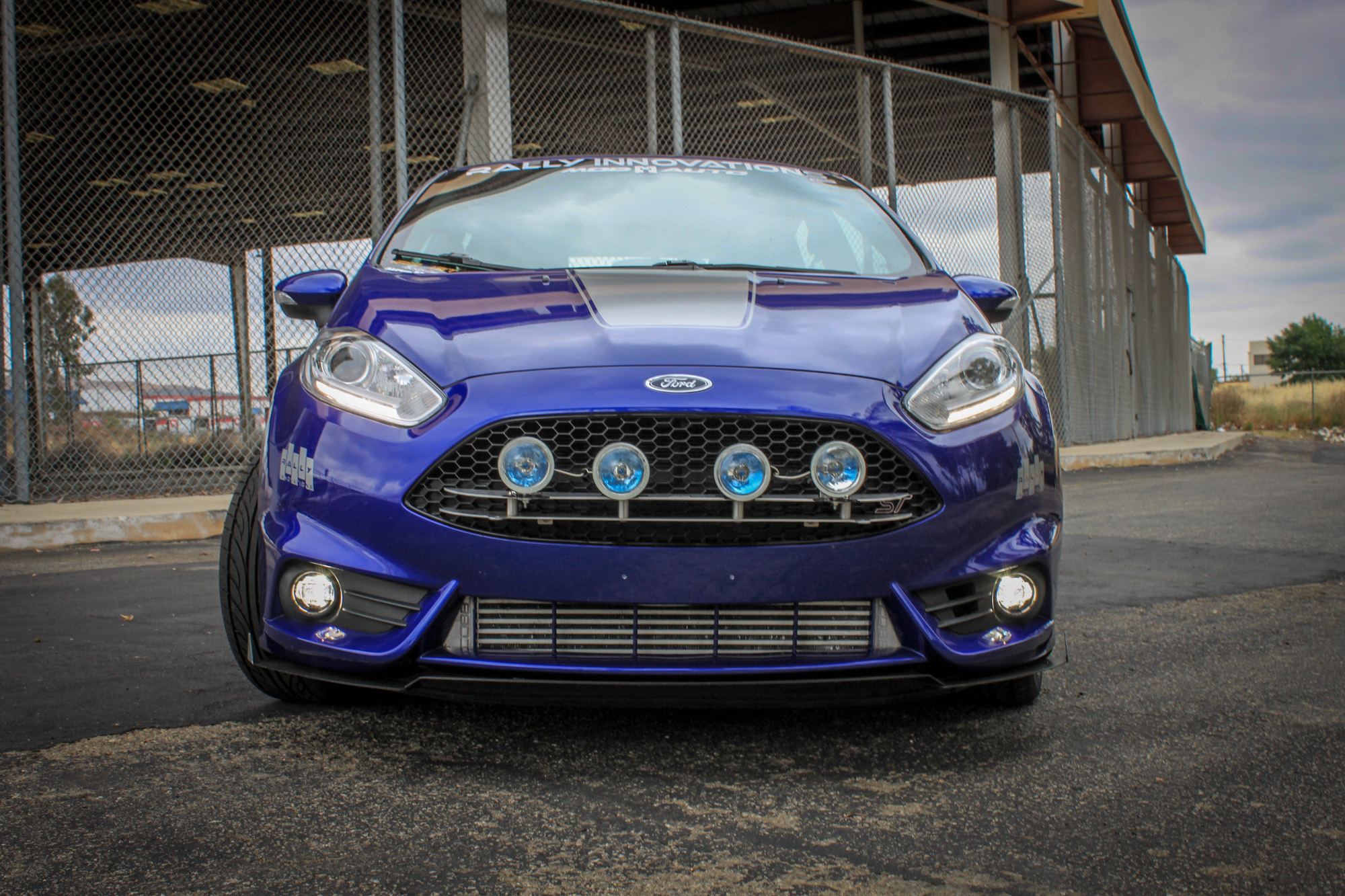

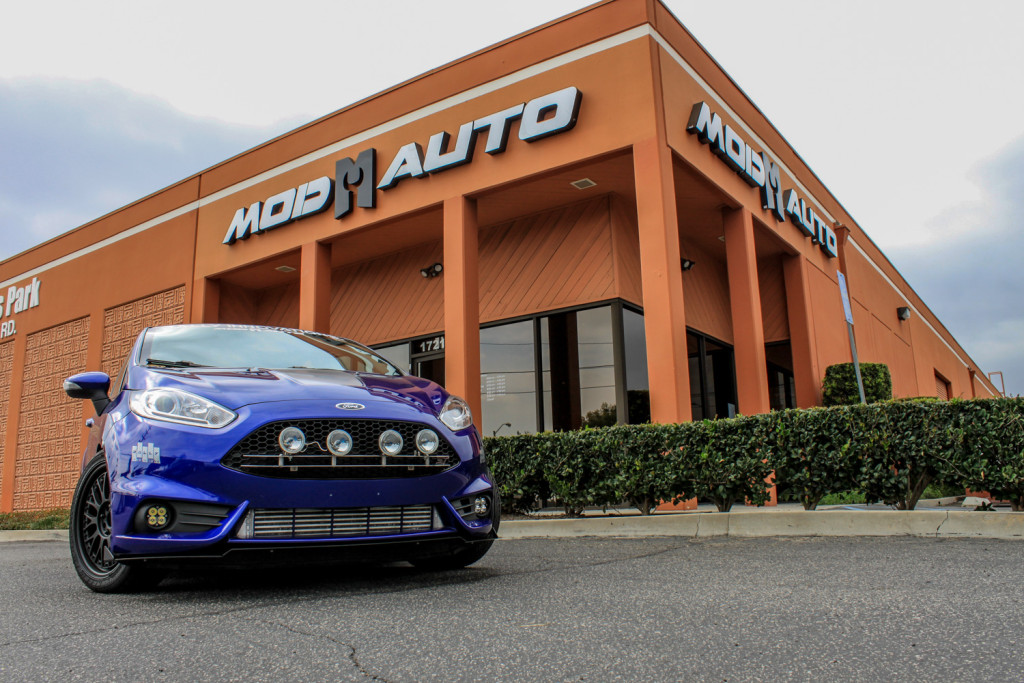

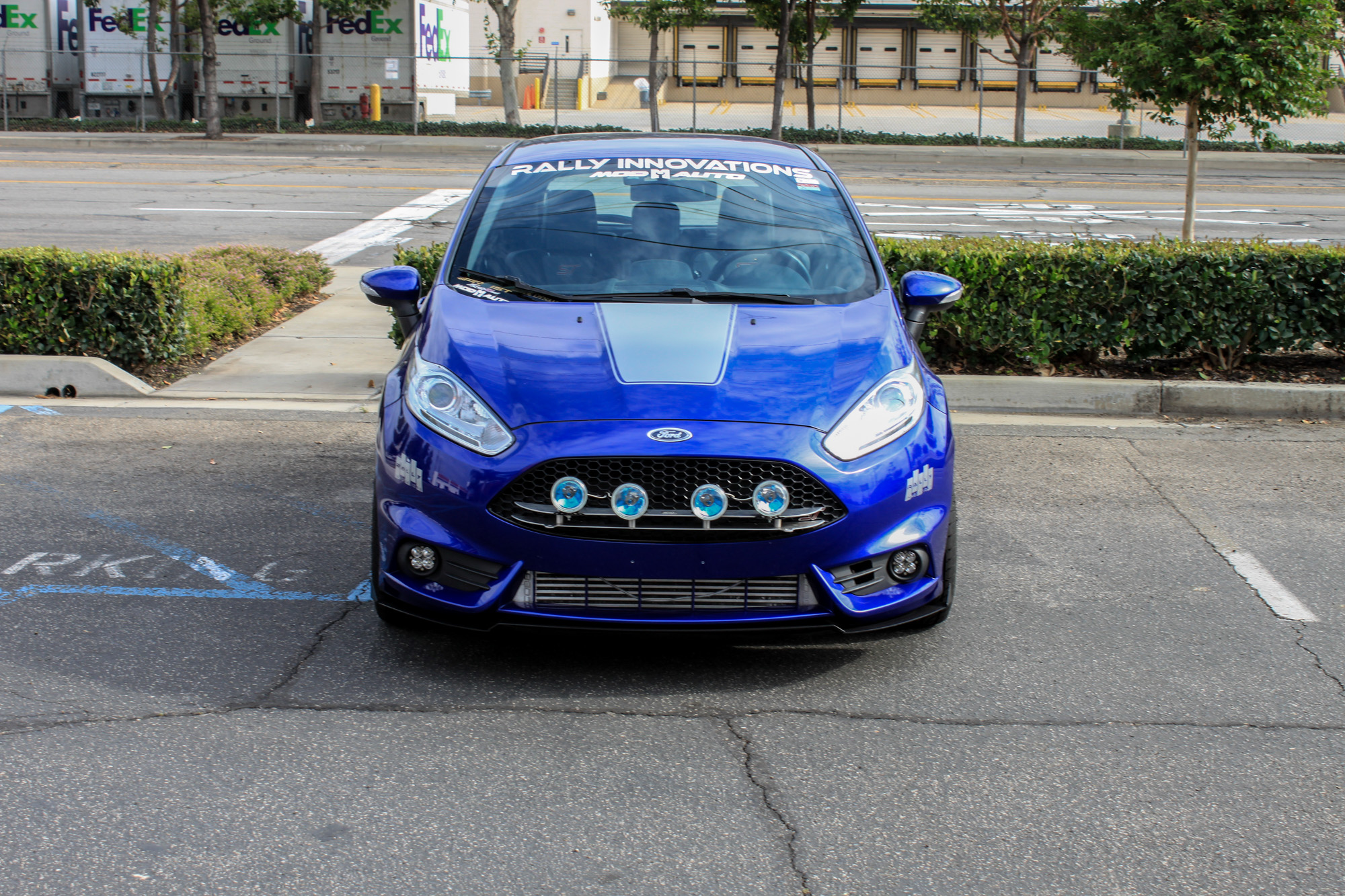

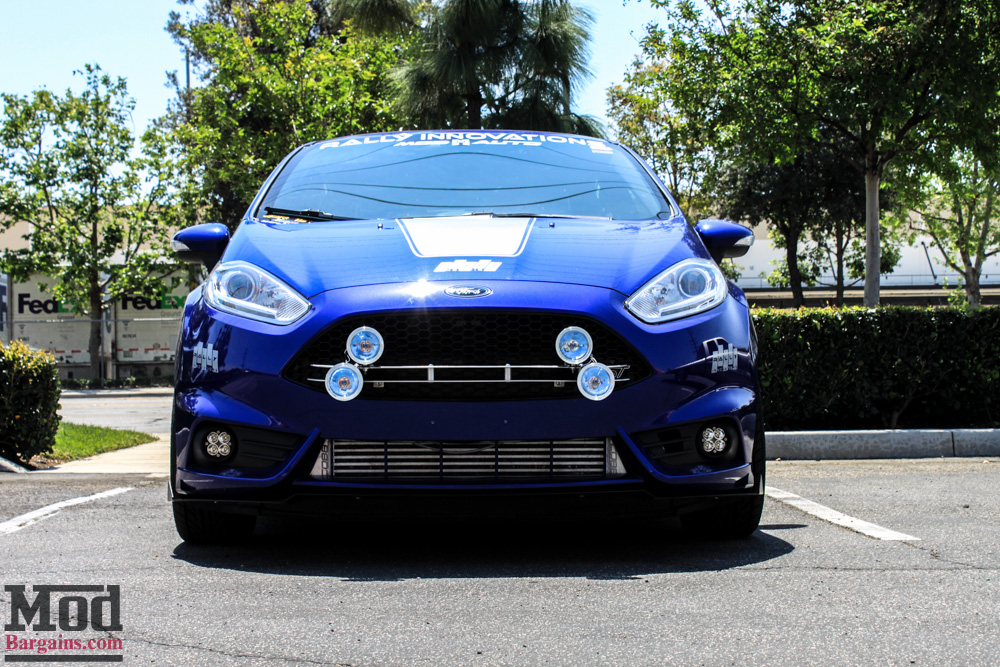

ModAuto_Fiesta_ST_Rally_Innov_Nick-19After experimented with the staggered mounting configuration, we found we liked mounting for auxiliary lights straight across was the best looking setup.

ModAuto_FiestaST_-3

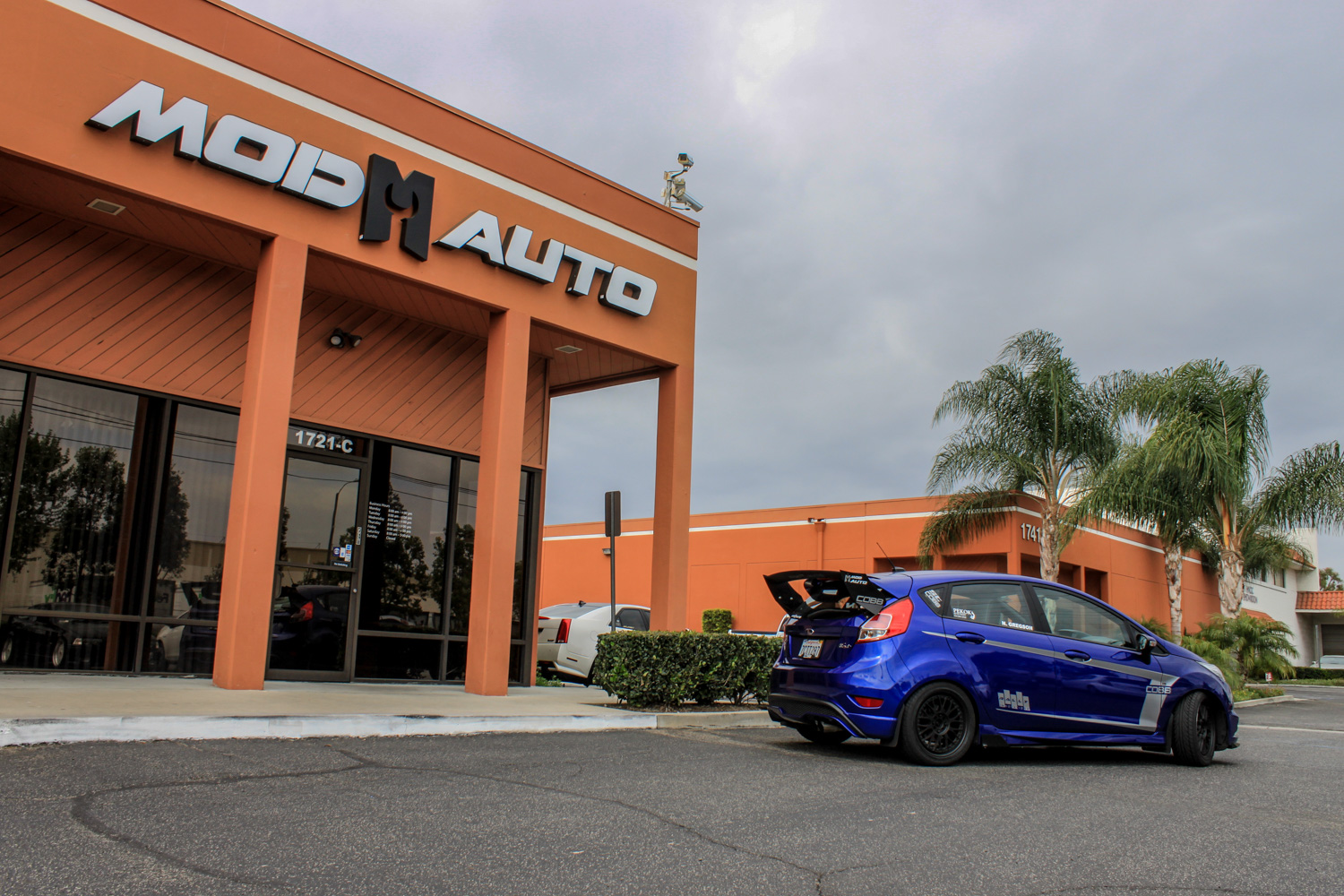

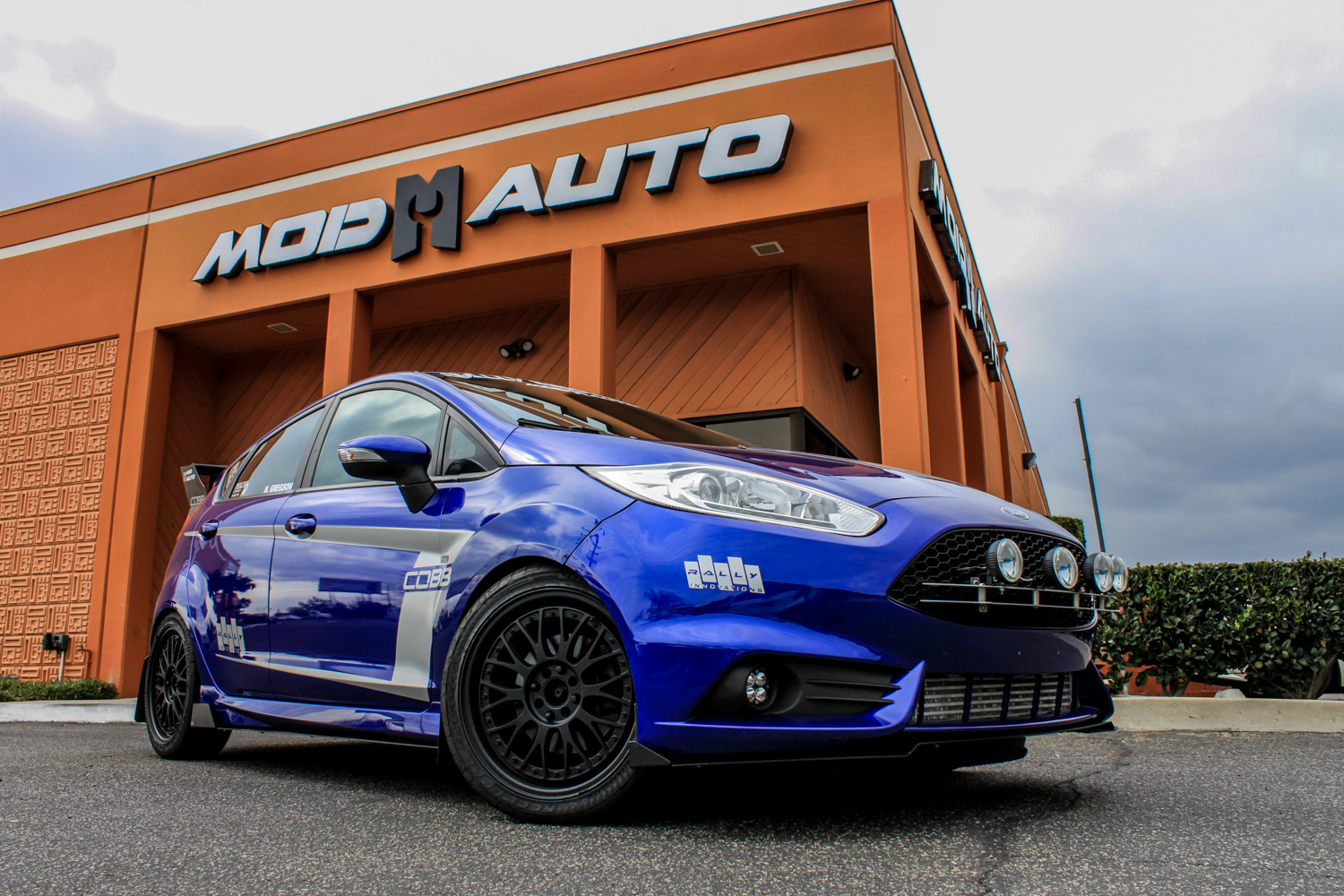

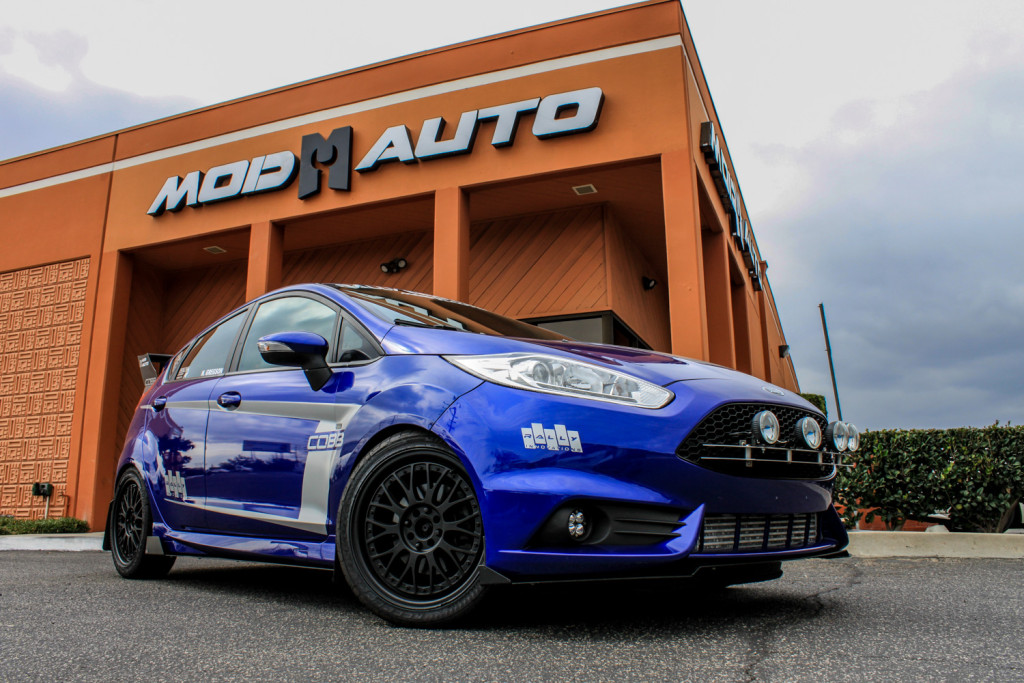

ModAuto_FiestaST_-1 ModAuto_FiestaST_-5I got the look I wanted for the Project Fiesta ST just right the Friday night before our Monthly Ford Performance meet at ModAuto on April 25th – just in the knick of time.

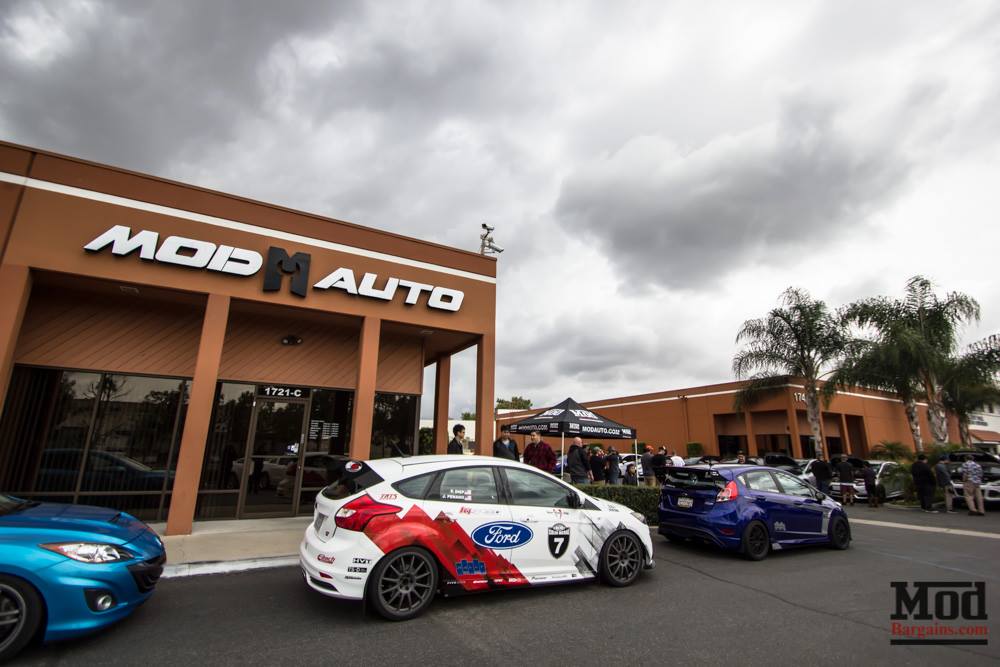

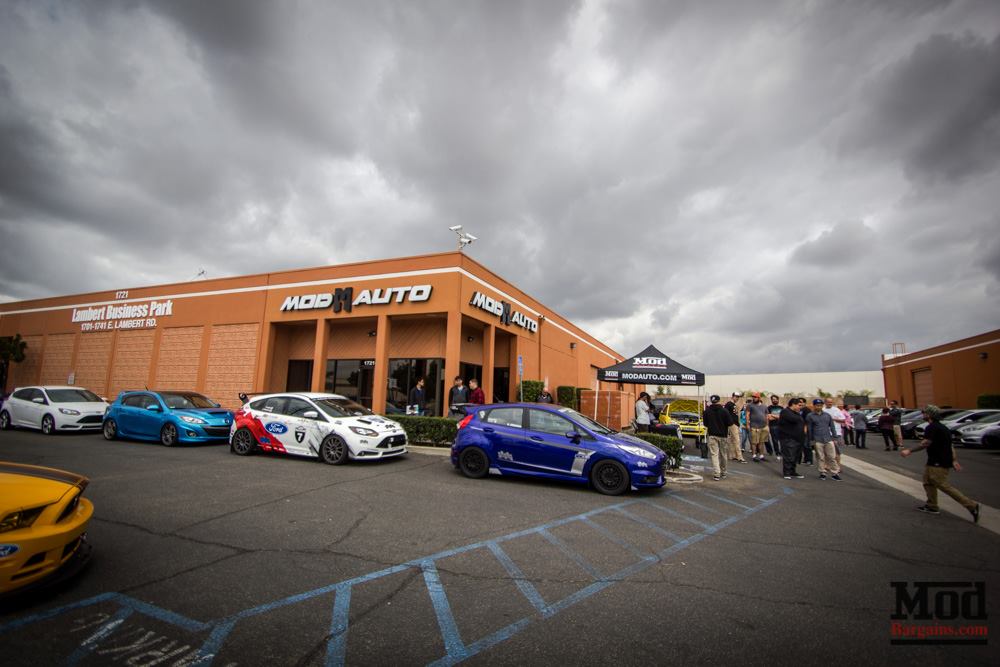

fiesta-st-race11 Our April 25th meet was a huge success drawing more than 40 of the highest performance late model Ford vehicles in SoCal – We added silver vinyl to the Front Splitter and Side Skirt Diffuser endplates to add some contrast and keep the aero details from disappearing in shadows.fiesta-st-race10

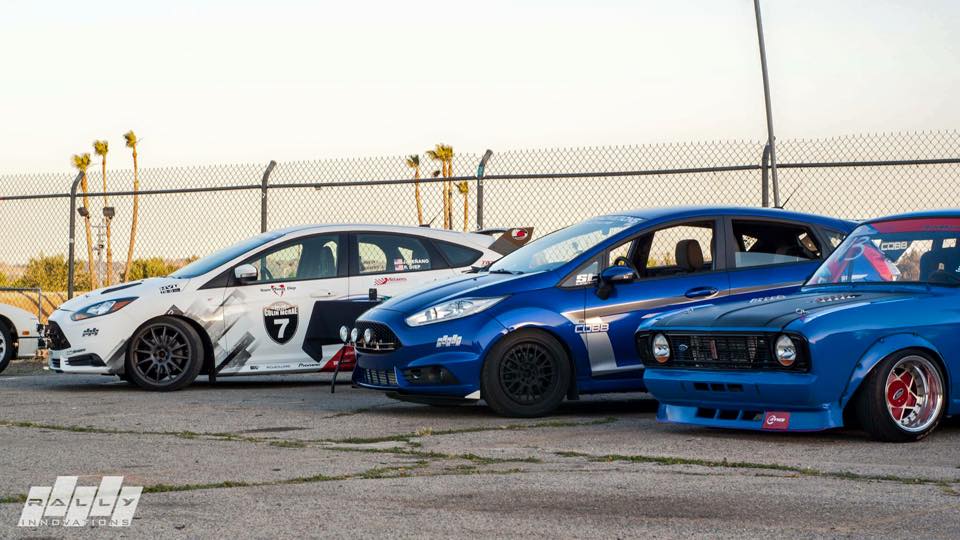

After showing our stuff at the meet, it was time to put the mods to the test on the track the following Tuesday April 28th, for the Ford Vs Chevy Shootout at Adams Motorsports Park in Riverside, Ca. Each session costs just $20, and it’s a proper road course, if a bit small, that’s been in operation since 1959 – it’s a wicked inexpensive way to go take your car road racing on a weekday night and a hell of a lot of fun.fiesta-st-race2In the pits at the races, we shared the company of Rally Innovations’ Focus ST and a very radical, totally custom, widebody turbocharged Ford Cortina. The Cortina was one of the most impressive builds we saw at Fab Fords, so we welcomed the opportunity to get to know its owner.fiesta-st-race8As the sun began to set on a hot 100f day, we hit the track and we got to put the finished project ST through its paces on a track for the first time since completing it.

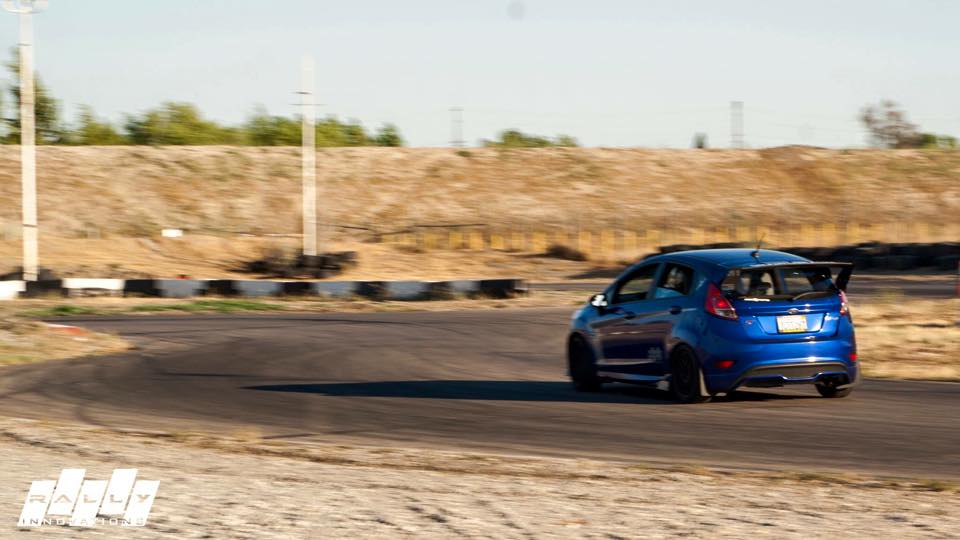

fiesta-st-race3Despite the heat the car behaved well on a mostly unfamiliar road course, and we shaved more than 6 seconds from our first lap out to our last run of the session, and Adams Motorsports Park’s tight layout really put the Fiesta ST suspension through the wringer – despite the trackday flogging, the ST Suspensions XTA Adjustable coilovers for Fiesta ST gripped well and handling response was firm and composed.

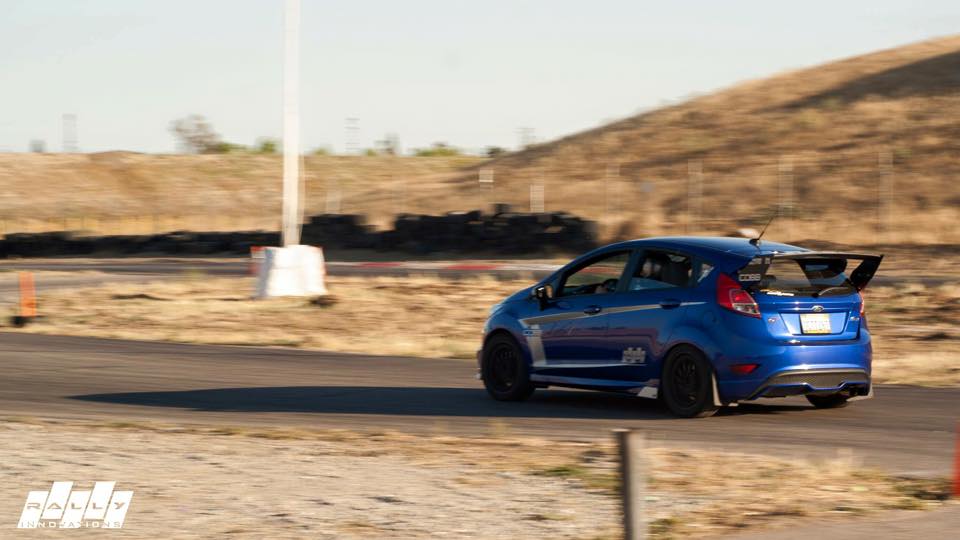

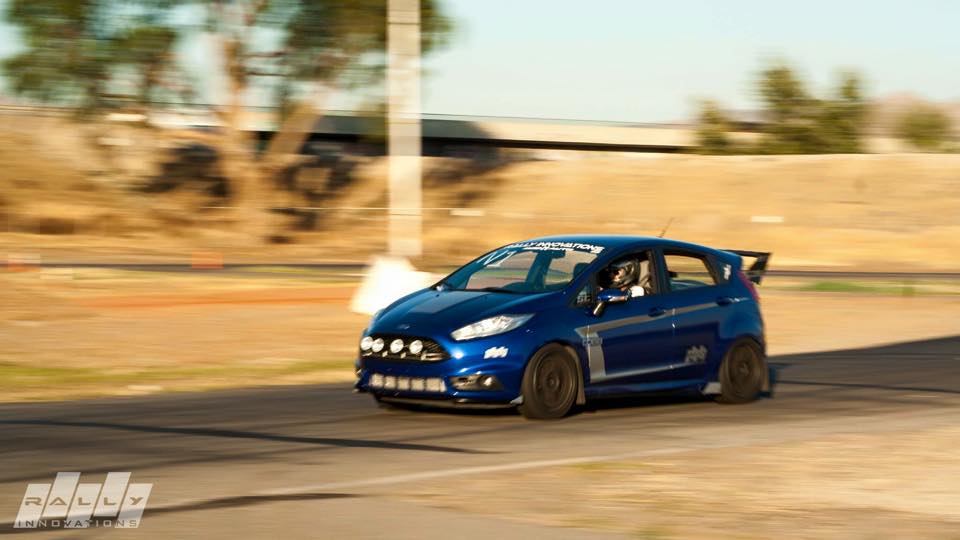

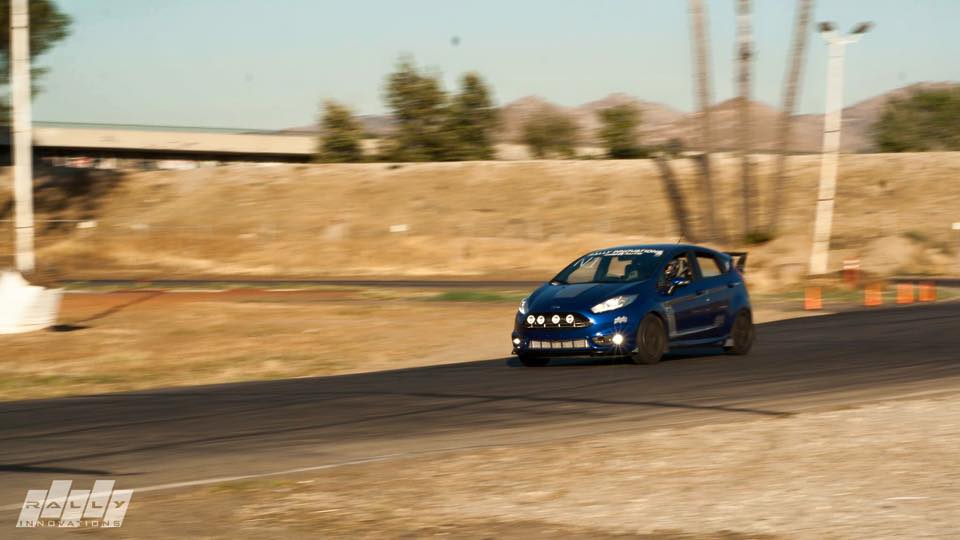

Check out these action shots from the track courtesy of our friend Wesley at Rally Innovations.

fiesta-st-race6
fiesta-st-race5
fiesta-st-race9THE BUILD SHEET

2014 Ford Fiesta ST

PERFORMANCE:
COBB AccessPORT V3 w/Custom tune by Mountune USA
COBB Front Mount Intercooler
COBB Catted Downpipe
COBB Cat-Back Exhaust
Modified INJEN Air Intake
Mountune Hotside Chargepipe
Mountune Rear Motor Mount

WHEELS & TIRES
XXR Type 528 17×7 ET 38
Accelera Alpha 215/40-17

SUSPENSION
ST Suspensions XTA Adjustable Coilovers

Pierce Motorsports Front Strut Tower Brace
Pierce Motorsports Lower Tie Brace (2pt)
STEEDA Rear Torsion Beam Brace

LIGHTING
Diode Dynamics Luxeon LED Fog Lamps (OE Replacement)
Imported European Fiesta Projector Headlights
4300K HID Retrofitted, custom LED front turn signals

INTERIOR
ST Battery Tie Down
ST E-Brake Trim Garnish
ST Dead Pedal
ASD Accelerator Pedal Lift Spacer

EXTERIOR
Rally Innovations Front Splitter
Rally Innovations Front Light Plate w/6x Light Mounting Provisions
Rally setup: Baja Designs Squadron LEDRally Innovations Side Skirt Diffusers
Rally Innovations Rear Spoiler
ROKBLOKZ Shorty Mudflaps
Rally Innovations “BOSS” style Body Side Graphics Package in Silver
Rally Innovations “BOSS”  style Hood “blackout” Graphics in Silver

fiesta-st-race4

Interested in Fiesta ST Mods for your own car? Talk to the Mod Experts at ModBargains- you can get advice from ST vehicle specialists like myself, our Mod Experts and the rest of the team by calling us at  714-582-3330 or chat live with us at www.modbargains.com

Thanks for joining us, see you next time!

Story Nick Gregson
Photos Nick Gregson, Bryan Munoz & Wesley @ Rally Innovations

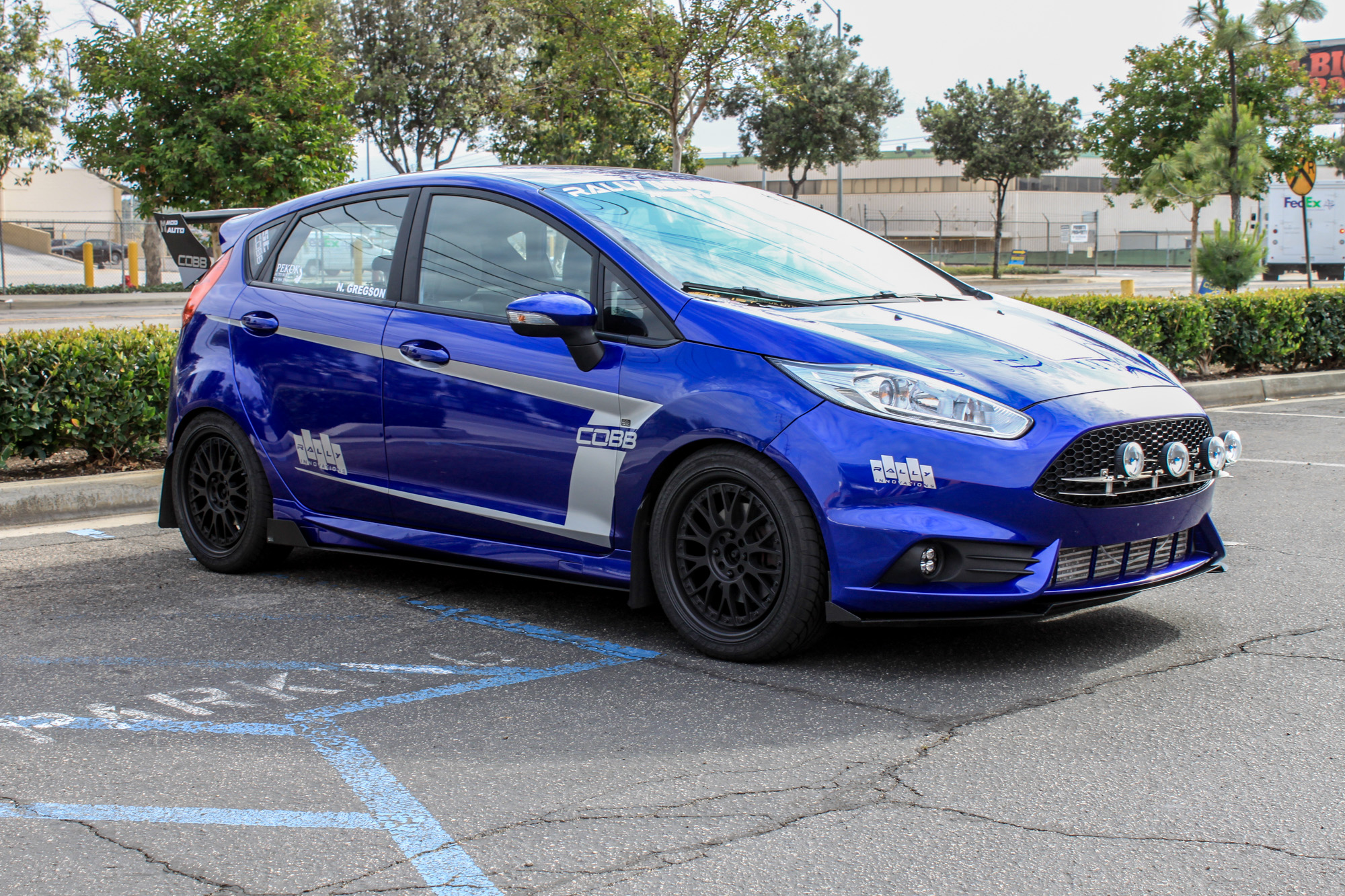

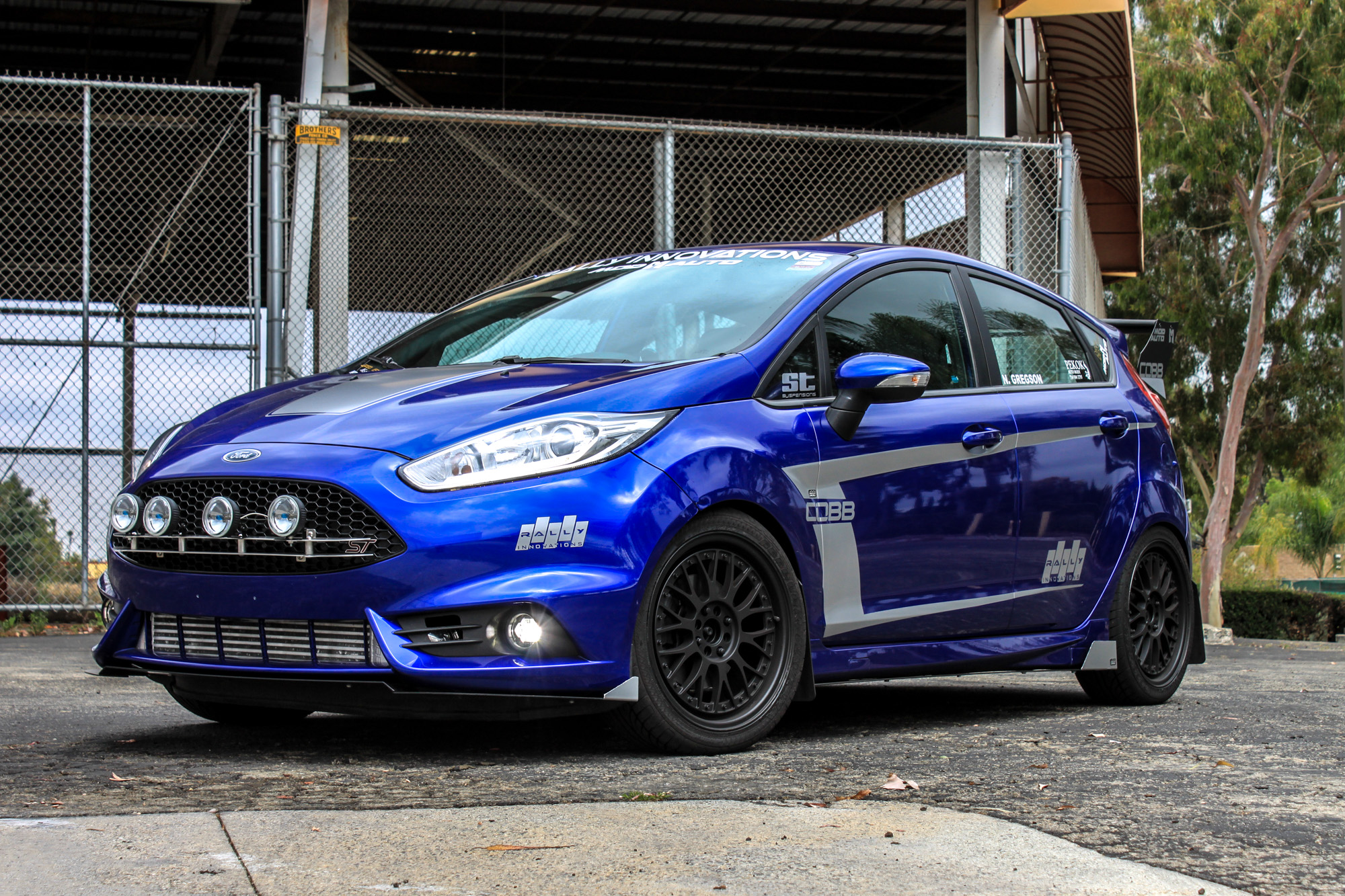

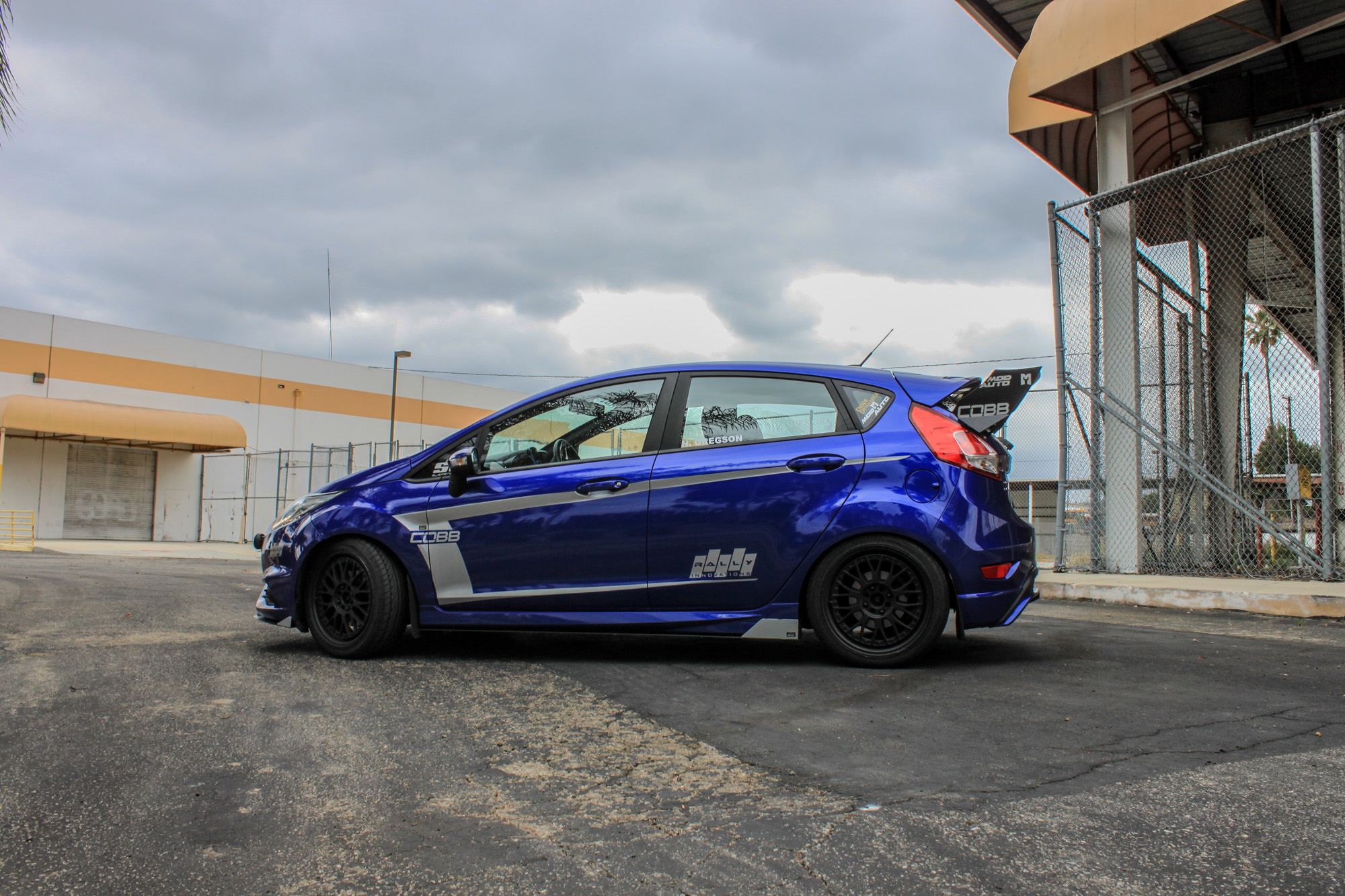

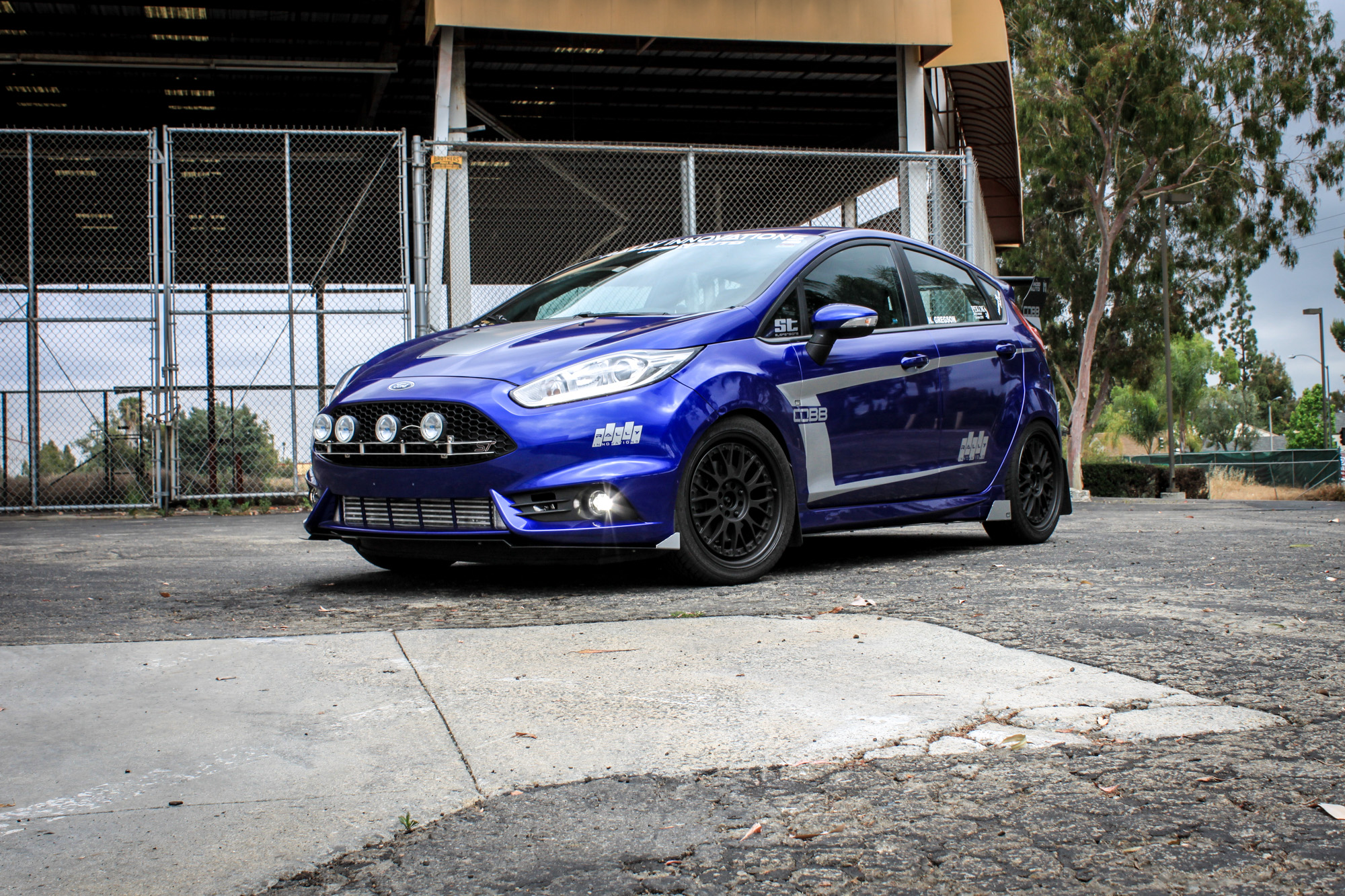

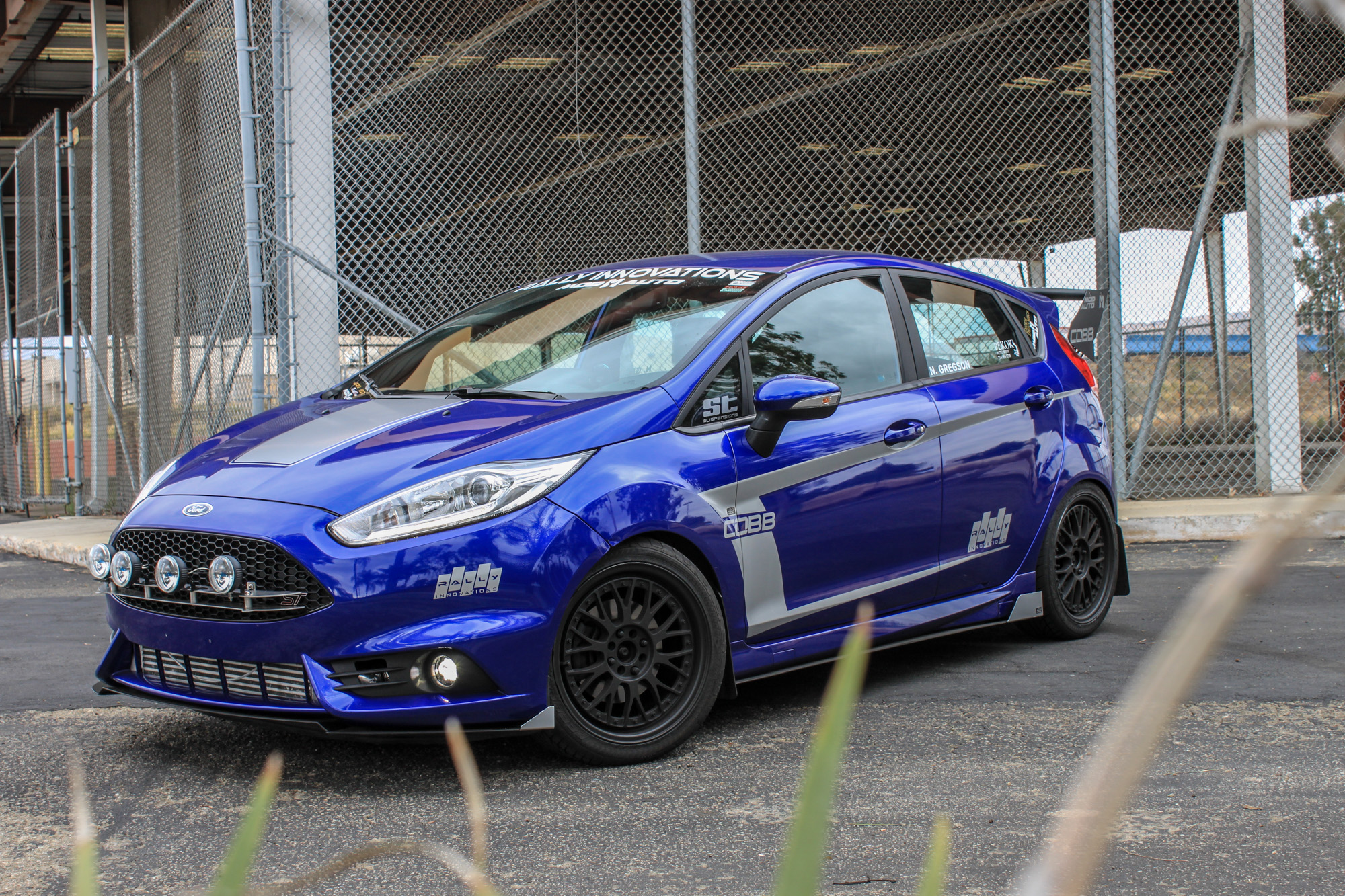

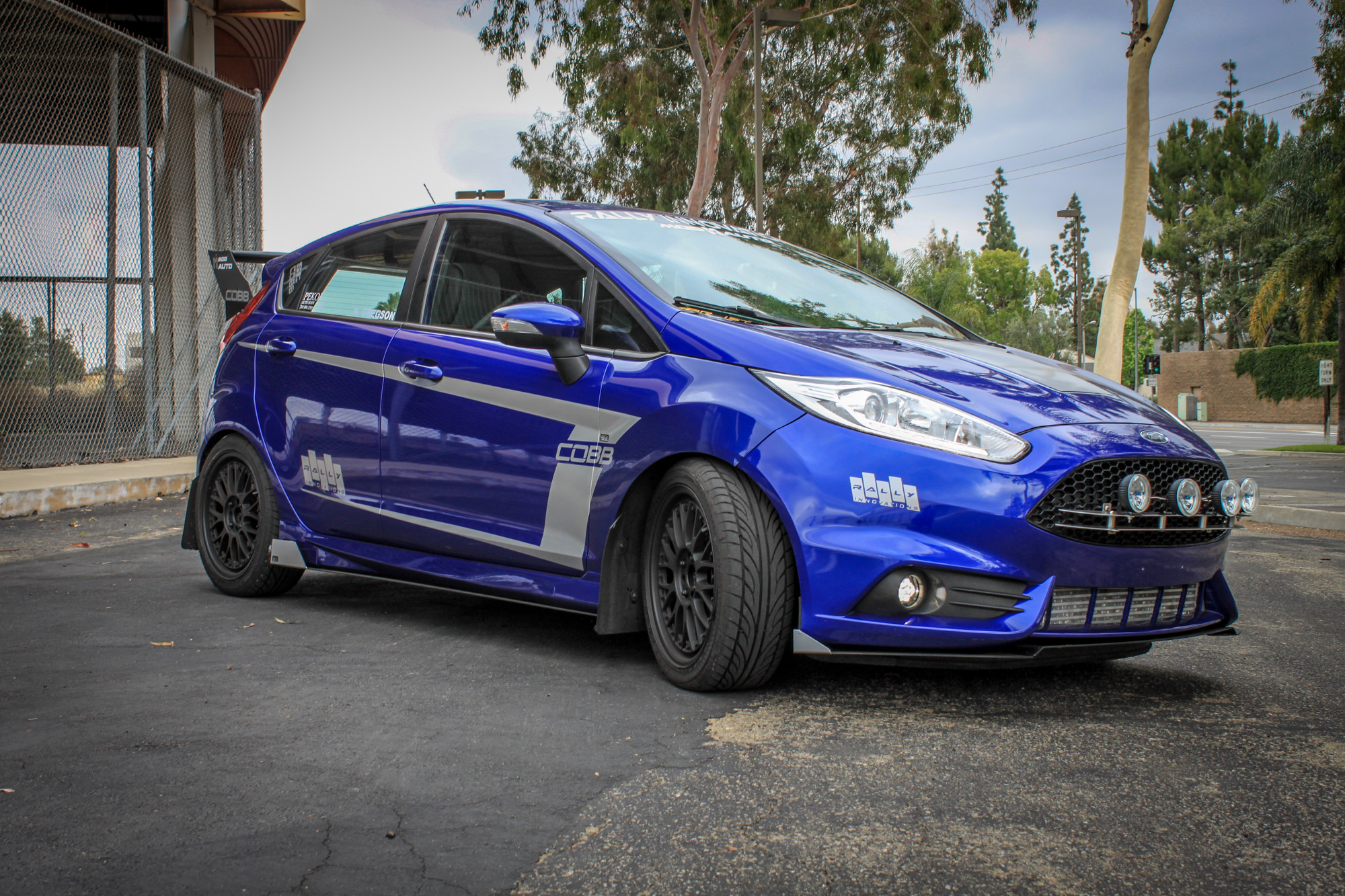

Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-1 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-2 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-3 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-6 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-7 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-8 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-9 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-12 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-13 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-15 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-18 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-19 Fiesta_ST_Cobb_RALLY_INNOV_nowatermark-20

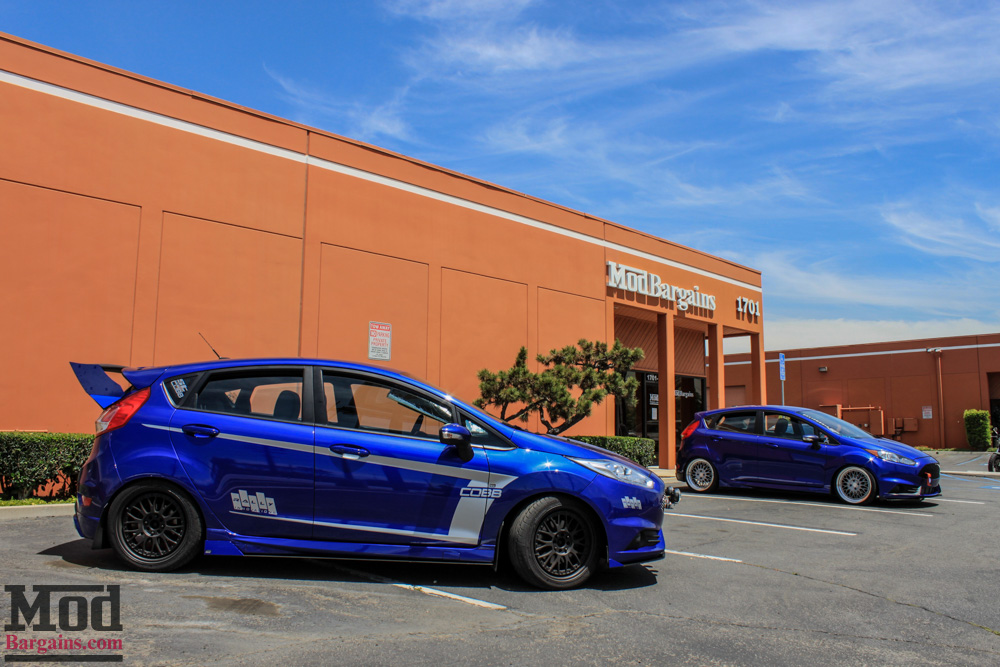

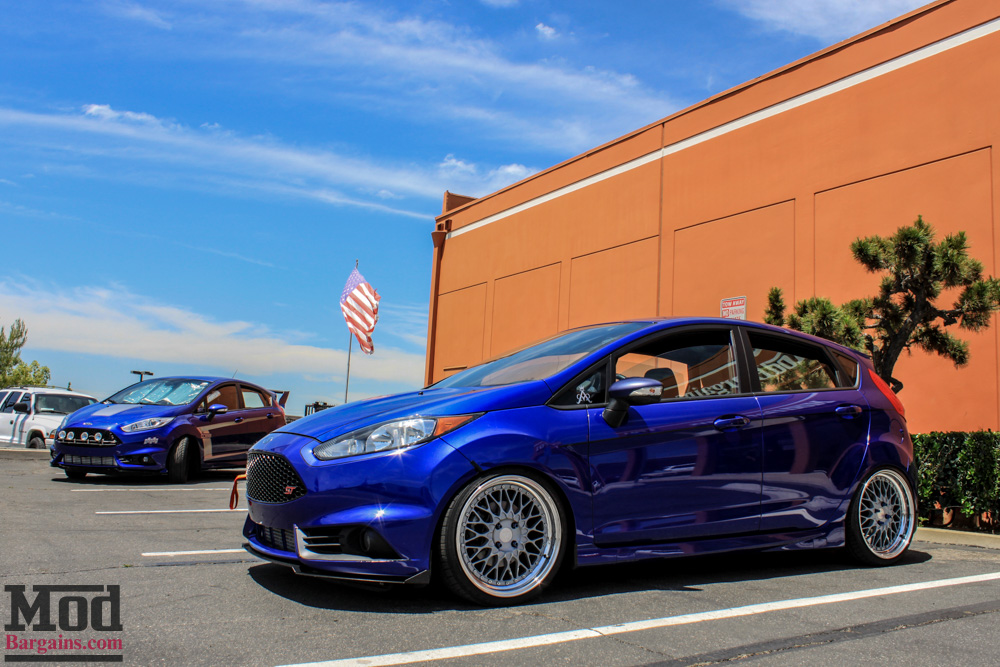

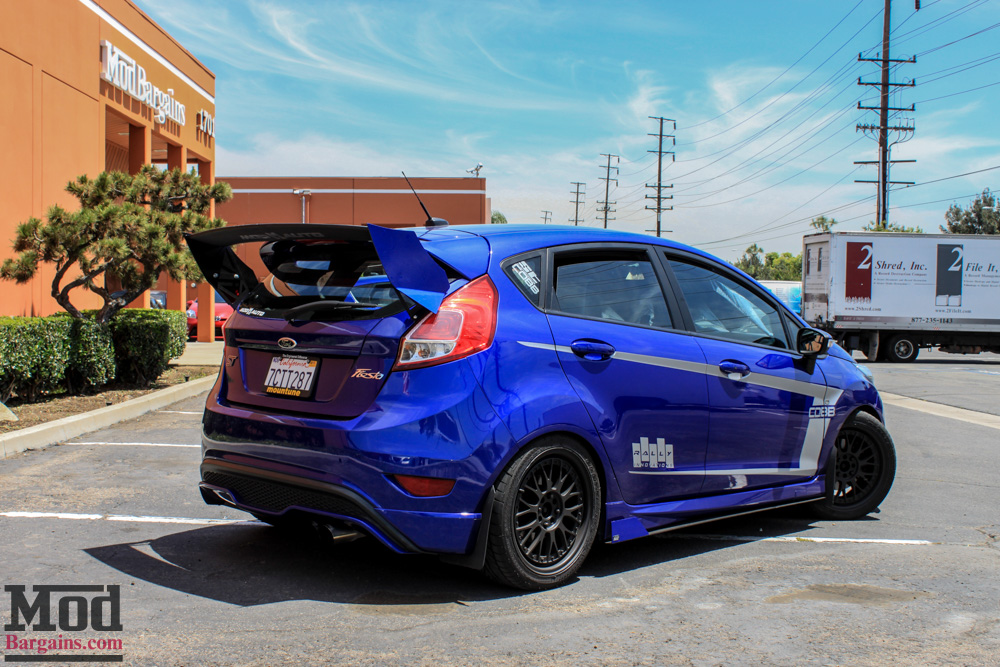

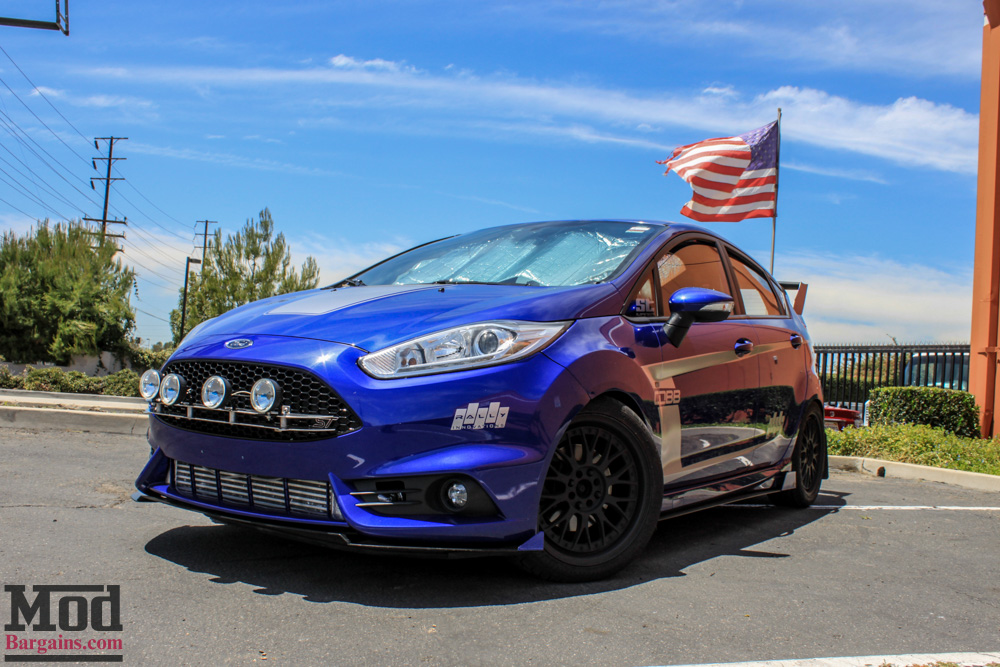

Then the next day we decided to try it in body color…

Fiesta_ST_non-location-specific-5 Fiesta_ST_non-location-specific-7 Fiesta_ST_non-location-specific-9 Fiesta_ST_non-location-specific-10



NEW PARTS
Rally Innovations Fiesta ST Front Splitter
Rally Innovations Fiesta ST Rally Light Mounting Plate
Rally Innovations Fiesta ST Side Skirt Diffuser Extensions
Rally Innovations Fiesta Race Rear Wing Spoiler
